      Allxon Ajax OOB Enabler Hardware Wiring and Setting



      Instruction

      Introducing to you the first generation of the Allxon OOB Enabler, officially known as the Allxon Ajax OOB Enabler. With the most powerful Power Cycling features included, we hope you maximize the potential of OOB power control solution with us.

      💡  Note

      Do not have Allxon Ajax OOB Enabler yet? Please contact Allxon Support at support@allxon.com for more information to see how you can get Allxon Ajax OOB Enabler.




      back to top

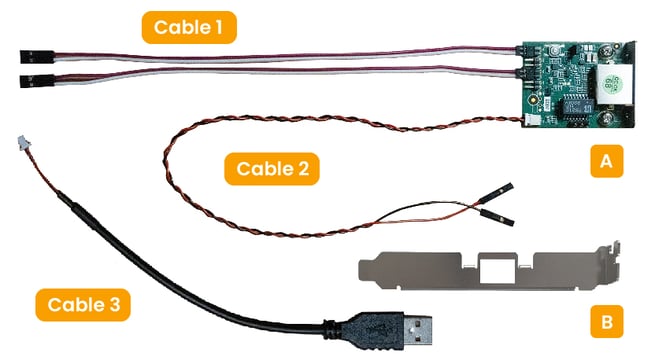

      Unpacking the Equipment

      Before setting up your Allxon Ajax OOB Enabler, make sure the following items are present in the package.

      > Package List:



       Label

      Description

      1

      		 A

      OOB Enabler main board

      2

      		 B

      PCI-E bracket

      2

      		 Cable 1

      Jumper wire

      3

      		 Cable 2

      OOB Enabler power input (Jumper wire)

      4

      		 Cable 3*

      OOB Enabler power input (USB type A)

      * Not included but can be purchased

      Ajax_equipment_unpacking



      back to top



      What You Will Need

      The following content outlines the software and hardware required for the activation process of Allxon Ajax OOB Enabler.

      • Edge device: Supports ARM and x86 architectures.
      • Desktop, laptop, or tablet: Used to connect to Allxon Portal to enable and activate OOB services. A web browser installation is required.
      • Allxon Portal account: Visit "Sign Up, Activate, and Sign In" to learn how to register an Allxon Portal account.
      • Internet connection: Ensure the edge device, OOB Enabler, and operating computer is connected to a stable network.



      back to top



      Hardware Wiring

      Wiring diagram for OOB Enabler main board.

      ARM Architecture

      The following information provides wiring examples for the NVIDIA® Jetson™ Dev. Kit.



      Ajax OOB Enabler
      Main Board

      AGX Orin Dev-Kit
      Pin Header

      Orin Nano Dev-Kit
      Pin Header

      Power Supply

      Power supply pin
      Red (+)
      Black (GND)

      		 -

      (J12)
      Pin 2
      Pin 6

      Power Supply

      		 Device power pin
      with USB cable       		 External USB Type A power input

      External USB Type A power input





      Ajax OOB Enabler
      Main Board

      AGX Orin Dev-Kit
      Pin Header

      Orin Nano Dev-Kit
      Pin Header

      Power Switch

      		 PWR-BTN
      PWR-BTN      		 (J42)
      Pin 4
      GND

      (J14)
      Pin 11
      Pin 12

      Power Reset
      Switch

      		 RST-BTN
      RST-BTN      		 (J42)
      Pin 3
      GND

      (J14)
      Pin 7
      Pin 8

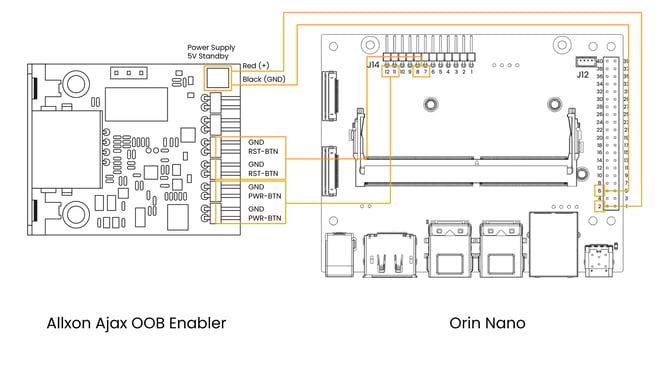

      Ajax_wiring_with_Orin_Nano

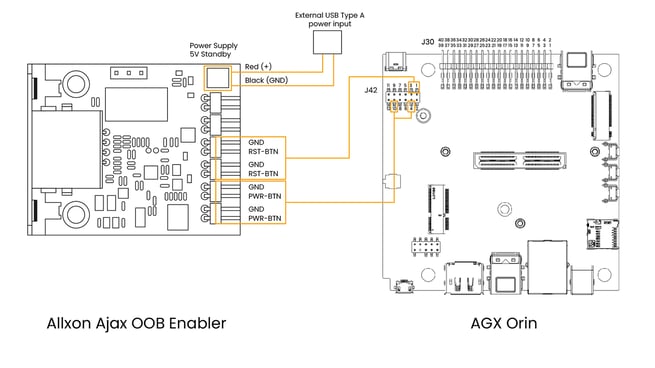

      Ajax_wiring_with_AGX_Orin

      💡  Warning

      To ensure proper power control by the OOB, please ensure that your device is set to ATX mode. For AGX Orin, "DO NOT" tie pin 5 and 6 together in the J42 headers.

      💡  Note

      For different ARM-based devices, please consult with your hardware supplier to confirm the pin configuration.

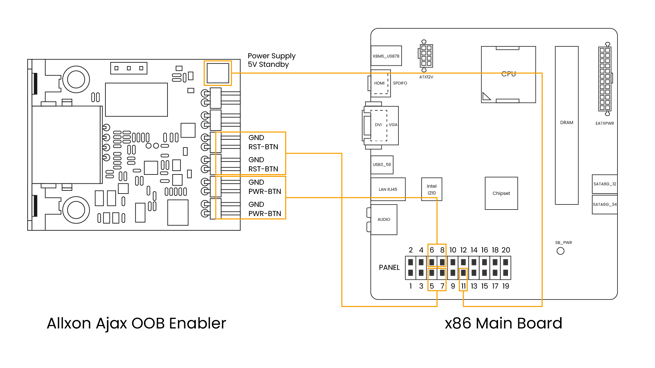

      x86 Architecture

      The following information provides wiring for x86-based device.



      Ajax OOB Enabler
      Main Board

      x86-Based Device Motherboard

      Power Supply

      Device power pin
      with jumper wire

      Pin 11 (5Vsby)

      Power Supply

      		 Device power pin
      with USB cable

      -





      Ajax OOB Enabler
      Main Board

       x86-Based Device
      Front Panel Header

      Power Switch

      		 PWR-BTN
      PWR-BTN

      Pin 6
      Pin 8

      Power Reset
      Switch

      		 RST-BTN
      RST-BTN

      Pin 5
      Pin 7

      Ajax_wiring_top_wiring_basic_x86
