Allxon swiftDR

Remote Out-Of-Band

Edge AI Device Management

Allxon swiftDR is an OOB (Out-of-Band) solution that integrates power-related features and troubleshooting tools like Allxon Cloud Serial Console, boosting the recovery of Edge AI devices from unresponsive disasters.

Get Started
illustration-cloud-based OOB technology-1
go to top
contact us

Unlocking Uninterrupted Remote Device Maintenance

Allxon swiftDR is a cloud-based solution that integrates hardware and software services with Allxon's OOB Technology, enabling seamless remote maintenance, control, and troubleshooting of edge AI devices via an independent OOB network.

With Allxon swiftDR's core OOB Enabler, you can efficiently manage edge AI devices by easily unlocking a variety of features—such as Cloud Serial Console, Power Cycling, and Power Scheduling—through straightforward hardware interfaces.

Furthermore, Allxon has established partnerships with over 20 leading global independent hardware vendors (IHVs), integrating our OOB solutions into their devices (Allxon Supported Edge AI System). This allows us to deliver tailored solutions promptly to meet your specific needs, streamlining edge AI projects and providing unparalleled convenience and support.


Why Choose Allxon Out-Of-Band Remote Management?

◆ Minimize downtime in Edge AI projects

◆ Reduce on-site maintenance costs

◆ Effortlessly manage remote Edge AI devices



Versatile Architecture Options

Allxon swiftDR boasts compatibility with various architectures, offering a great deal of versatility. You can harness the full potential of the Allxon public cloud for seamless utilization of the Allxon Software-based RMM solution. Moreover, for those who prioritize proprietary cloud or intranet architectures, Allxon provides robust APIs for effortless integration of swiftDR with their own portals or DMS, ensuring maximum flexibility and control.

Allxon Cloud

Allxon_solution_architecture_Allxon_cloud

Proprietary Cloud or On-Premises

Allxon_solution_architecture_others



Power cycling-1

Instant System Errors Resolution

Power Cycling

Utilizing OOB networks, Power Cycling offers a range of power-related functionalities, swiftly resolving system errors and unresponsive devices by remotely powering OFF and back ON your edge AI systems.

icon-reboot_reset

70%+ Abnormalities Resolved

Over 70% of OS issues, unexpected software, or hardware compatibility problems can be resolved by restarting the devices.

icon-energy-saving

Energy Saved

Power ON/OFF Scheduling effectively manages device power, saving total energy usage.

icon-reducing carbon emission

Carbon Emissions Reduced

Remotely resolving device abnormalities reduces on-site support frequency, leading to a reduction in carbon emissions

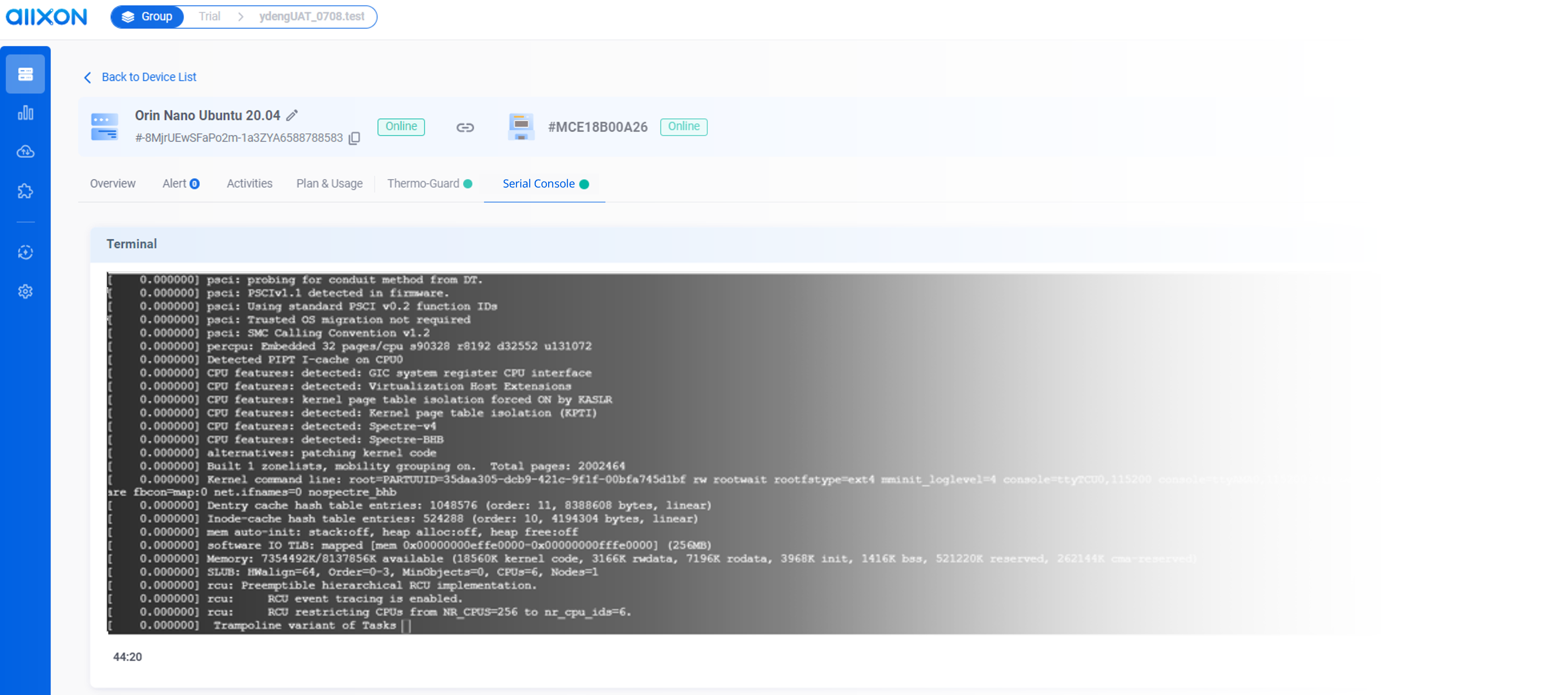

Cloud Serial Console

Industy-First Device-Level Troubleshooting

Cloud Serial Console

The industry's first and only solution for Edge AI devices, enabling direct remote access to lower-level systems via a serial console for troubleshooting, offering unmatched convenience and security. Learn More.

icon-Increase Security

Project Security Boost

Cloud Serial Console remotely accesses the main system via a physical serial port, eliminating the need for an SSH server and enhancing information security.

icon-minimize_downtime

Project Downtime Minimized

Real-time viewing of Jetson device boot sequences promptly identifies issues, improving troubleshooting efficiency and minimizing device downtime.

Allxon_icon_20210622---Wanda_reliable

Management Process Streamlined

Maintenance tasks on edge devices can be efficiently executed using terminal commands and by configuring BIOS/Jetson UEFI settings, thereby enhancing management efficiency.



Extend Functions-1

From Monitoring to Troubleshooting

Extend Functions

Allxon SwiftDR offers a variety of customizable Out-Of-Band (OOB) features, such as environmental monitoring and anomaly resolution. Feel free to contact us and explore the boundless potential of Allxon SwiftDR tailored to meet your project's needs.

icon-SSD_recovery

SSD Backup & Recovery

Remotely perform SSD Recovery to restore the device to its backup state, eliminating anomalies and minimizing downtime.

icon-thermo-guard

Thermo-Guard

Monitor environmental or specific component temperatures to enable timely responses to high temperatures, extending the hardware's lifespan.

icon-tamper_detection

Tamper Detection

Monitor the enclosure lid for openings or movements, and receive alerts and activate the buzzer to enhance project security.

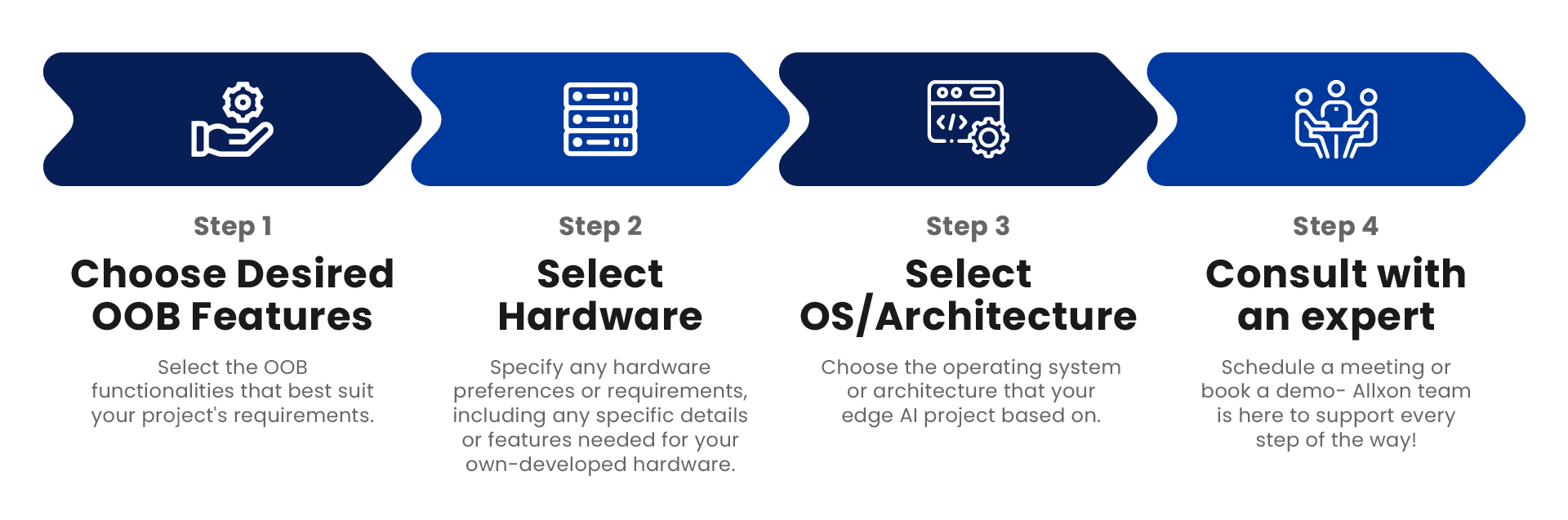

How to Get Started?

Just four simple steps to take full control of your edge AI devices!

Allxon swiftDR_getting start

*Learn more about the Integrated Device List to see all devices supported for Allxon SwiftDR

*If you have edge devices but need an OOB Enabler, you can buy one from us with an NV dev kit included.



Effortless Integration: Allxon's OOB Solutions

Allxon's OOB Enablers revolutionize the integration with Edge AI systems. With two modules, Bolt and Ajax, each offering different functions, available to provide tailored options to meet diverse functional needs. Connect with Allxon or your local distributors to unlock the full potential of comprehensive Remote OOB Management solutions.


OOB Management Functions

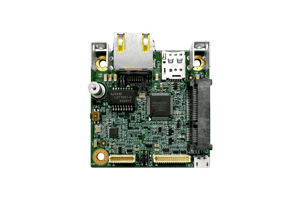

Allxon swiftDR OOB Enabler Bolt Ajax
Top View Allxon swiftDR OOB Enabler Bolt Allxon swiftDR OOB Enabler Ajax
Specsheet
Power
Control
Basic Power Cycling1
Advanced Power Cycling2
Environmental
Detection
Thermo-Guard
Tamper Detection
Access &
Troubleshoot
Cloud Serial Console
Remote SSD Backup & Recovery
1Basic Power Cycling: Power Switch, Force Shutdown, and Reset.
2Advanced Power Cycling: Basic Power Cycling, Power ON/OFF Detection, Power ON/OFF Scheduling, and Device Always-ON.

Specification
  Bolt Ajax
I/O Interface OOB Power Supply ● 2 Sets Power Input (+5V standby/GND) ● 1 Set Power Input (+5V standby/GND)
Power Control ● 1 Set Power Switch (PWR_SW/GND)
● 1 Set Power Reset (RST_SW/GND)
● 1x power ON/OFF detection (PWR DEF)
● 2 Sets Power Switch (PWR_SW/GND)
● 1 Set Power Reset (RST_SW/GND)
Reset Button ● 1x OOB Enabler Reset Button
● 1x Factory Network Reset Button
● 1x Factory Network Reset Button
Network ● 1x 10/100 Mbps RJ45 LAN Port
● 1x Nano SIM slot for 4G Module
● 1x Full-size mini PCIe Socket
● 1x 10/100 Mbps RJ45 LAN Port
LED Indicator Lights ● OOB Enabler power ON/OFF indicator
● Ethernet indicator
● MCU Power On/Off Indication
● Allxon Service Activation Indication
Network Ethernet 10/100 Mbps RJ45 Port 10/100 Mbps RJ45 Port
Wireless ● 4G LTE
● Wi-Fi
-
Protection 1.5 KV magnetic isolation 1.5 KV magnetic isolation
Power Requirement Input Voltage 5V Standby Power from Host System 5V Standby Power from Host System
Power Consumption < 0.5 W (without additional peripheral connected) < 0.5 W
Mechanical Dimensions ● 58.00 x 55.00mm (without bracket)
● 121.11 x 68.73mm (with bracket)
● 40.00 x 35.15mm (without bracket)
● 43.40 x 35.15mm (with bracket)
● 120.02 x 40mm (with full-height bracket)
Environment Operating Temperature -40 to 75ºC (-40 to 163ºF) -20 to 70ºC (-4 to 158ºF)
Storage Temperature -40 to 85°C (-40 to 185°F) -40 to 85°C (-40 to 185°F)
Humidity 5 to 95% (non-condensing) 5 to 90% (non-condensing)
Certification CE / FCC, RoHS & REACH compliant CE / FCC, RoHS & REACH compliant

Local Distributors
  Bolt Ajax
EMEA Texim Europe
(Germany/Netherlands)
- Purchase Now
Impulse Embedded
(United Kingdom)
- Purchase Now
20210528_isometric_01

Out-Of-Band Power Cycling

Allxon swiftDR for Power Cycling is a powerful disaster recovery solution, with various power-related features. Instantly resolve system errors and unresponsive devices by remotely powering OFF and back ON your edge AI systems.

icon-power_switch

Power Switch

Remotely restart or power OFF the main system, ensuring smooth operations and efficient control.

icon-force_shutdown

Force Shutdown

Instantly force devices to shutdown to resolve unplanned system crashes.

icon-power_scheduling

Power ON/OFF Scheduling

Schedule devices to automatically power ON and OFF for optimized power consumption.

icon-device_always_on

Device Always ON

Ensure devices remain in the power ON state to access remote device monitoring at any time and to keep operations running 24/7.

icon-power_detection

Power ON/OFF Detection

Remotely detect your device's power status to enable other swiftDR features such as power ON/OFF scheduling and device always ON.

  • Streamline Technical Operations
  • Minimize Business Downtime
  • Reduce Project Maintenance and Management Costs
illustration-Expand Remote Management-615-1

Advancing Remote Device Management

Allxon makes it possible to add custom OOB features onto Allxon Portal for industry-focused remote Out-Of-Band device management services.

icon-thermo-guard

Thermo-Guard

Receive alerts when devices reach abnormal temperatures and automatically shut down the system to increase hardware longevity.

icon-SSD_recovery

SSD Backup & Recovery

Remotely perform SSD recovery from Allxon Portal to instantly roll back device operations to a previous state.

icon-tamper_detection

Tamper Detection

Monitor the system chassis status to prevent hazards such as vibration, tampering, or unauthorized access.

  • Extend Out-Of-Band Management
  • Add Features According to Your Needs
  • Elevate Hardware and Software Solutions with OOB Capabilities
illustration-Flexible Communication Options-615-1

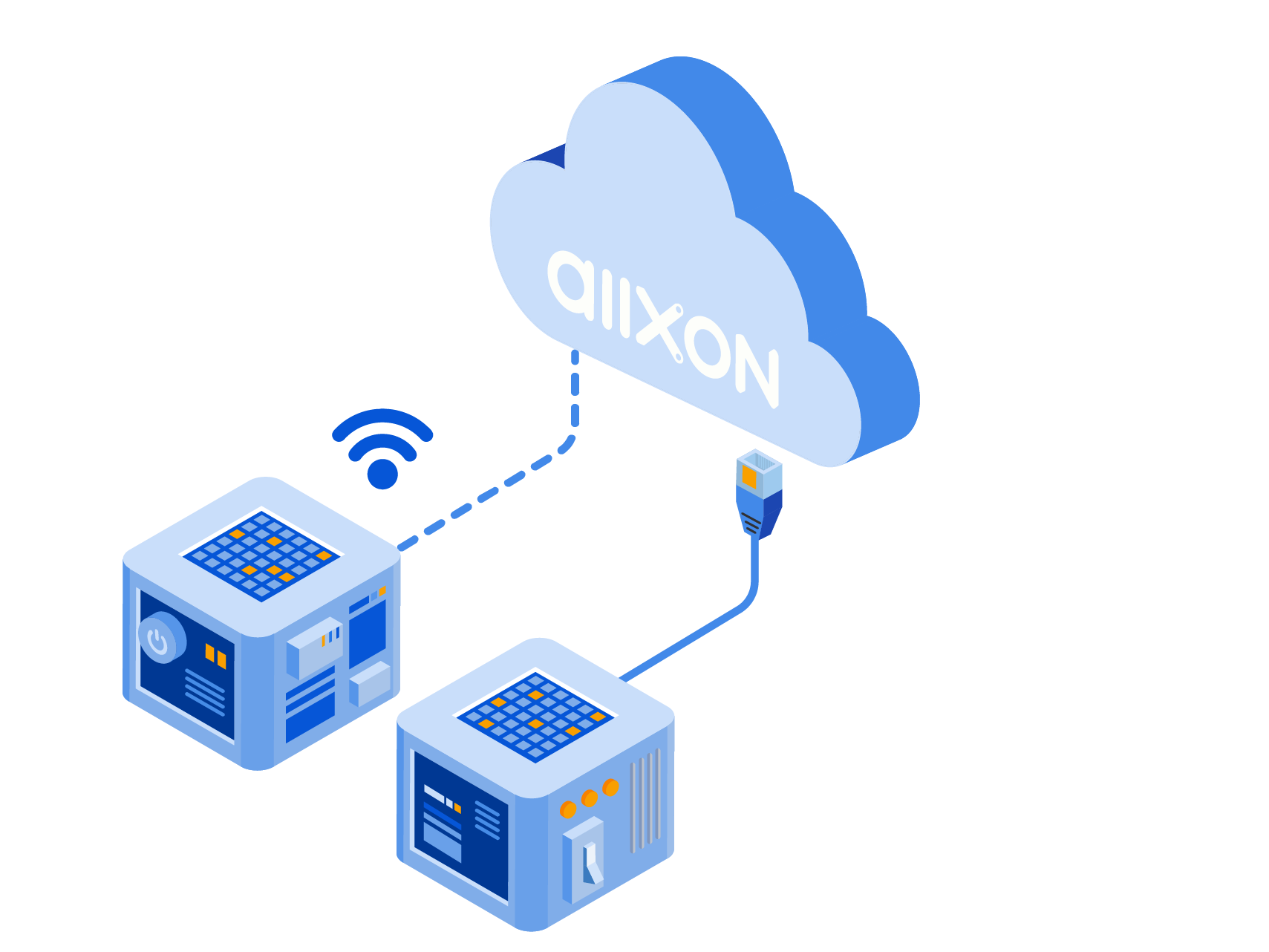

Versatile Networking Options

Allxon swiftDR supports diverse networking options, including wired Ethernet as well as wireless communication through 4G LTE and WiFi. Allxon offers the flexibility of NC-SI to enable versatile hardware design possibilities.

icon-wireless

Wireless: 4G LTE/WiFi

Ensure your autonomous mobile robots stay connected to the Internet to resume operations even when devices appear unresponsive.

icon-NCSI

Shared LAN Port (NC-SI)

Simplify the design of edge devices using NC-SI to share the same network port, saving costs on space and integration.

  • Diverse OOB Network Communication Options
  • Increased Hardware Design Flexibility
  • Enhance System Stability

Safe, Small, and Smart Solutions

Making swiftDR Possible

Allxon OOB Enabler is a customizable disaster recovery solution that enables Allxon swiftDR features on edge AI devices. Unlock Allxon's default OOB features or add your own to gain 24/7 access to your edge AI devices, even when they appear unresponsive.










Allxon swiftDR OOB Enabler
  • Easy-to-Integrate
  • Supports Public and Local Network Environments
  • ARM9 microprocessor embedded
  • Built-in Allxon Out-Of-Band (OOB) service agent, capable of supporting both public and local network environment architectures
  • Includes a fully secure central portal for remote device management
  • Supports complete power control over the edge system when the system is unresponsive
  • Full hardware, software, and cloud integration with Allxon Octo SDK
  • Supports Cloud Serial Console *
  • Supports edge system power ON/OFF detection *
  • USB 2.0 high speed host/device *
  • Supports I²C / UART / Digital Input *
  • Supports wireless: 4G LTE/WiFi *

BoltAjax

* For Bolt Only

Cloud serial console whitepaper

Cloud Serial Console Whitepaper

The first OOB Hardware-Based remote console on the market, enabling remote control of edge devices with high security.
